Generating a Domain YAML File using AI

This guide shows you how to use AI-powered VerifIA feature, Domain Genflow that generates the domain specification Instead of manually crafting it as described in Domain Creation. For a deeper conceptual overview of Domain Genflow in VerifIA, see Concepts → Domain Genflow.

Why Using AI for Domain Generation?

Crafting a Domain Specification manually means:

Enumerating feature variables with types, ranges, and descriptions
Writing constraints that all inputs must satisfy
Defining rules that express logical relationships between inputs and the target

As your models and business logic grow more complex, this process becomes time‑consuming, error‑prone, and hard to maintain.

Solution: VerifIA automates and orchestrates LLM‑powered agents to extract domain knowledge from both structured (DataFrame) and unstructured (PDF, Markdown) sources, delivering:

Efficiency: Free your team from tedious YAML editing.
Accuracy: Leverage AI’s pattern recognition to reduce human inconsistency.
Scalability: Reuse the workflow across diverse datasets and domains.

Feature Overview

%%{init:{
  'flowchart': {
    'useMaxWidth': true,
    'nodeSpacing': 50,
    'rankSpacing': 22
  }
}}%%
flowchart LR
  %%—— Subgraphs for each layer —————————————————————————————————————
  subgraph InputLayer[📥 **Input Layer**]
    direction LR
    A[🗂️<br/>Data]
    C[📋<br/>Model<br/>Card]
    B[📄<br/>Docs]
  end

  subgraph AgentLayer[🤖 **Agent Layer**]
    direction LR
    D[🐼<br/>DataFrame<br/>Agents]
    E[📖<br/>Retriever<br/>Agents]
  end

  subgraph CoreLayer[⚙️ **Core**]
    direction LR
    F[🛠️<br/>State<br/>Graph]
  end

  subgraph GenValLayer[🔄 **Generation & Validation**]
    direction LR
    G[📝<br/>YAML<br/>Generator]
    J[🤝<br/>**Human**<br/>**UI**]
    H[🔍<br/>Schema<br/>Validator]
  end

  subgraph ExportLayer[📤 **Export**]
    direction LR
    I[📦<br/>Domain<br/>Spec]
  end

  %%—— Arrows between layers —————————————————————————————————————
  A --> D
  B --> E
  C --> D
  C --> E

  D --> F
  E --> F

  F --> G
  G --> J
  J --> H
  H --> J
  J --> G
  J --> I

  %%—— Style each subgraph background ——————————————————————————————
  style InputLayer   fill:#f9f9f9,stroke:#333,stroke-width:1px
  style AgentLayer   fill:#eef9ff,stroke:#333,stroke-width:1px
  style CoreLayer    fill:#f9fef2,stroke:#333,stroke-width:1px
  style GenValLayer  fill:#fff8f2,stroke:#333,stroke-width:1px
  style ExportLayer  fill:#f2f2ff,stroke:#333,stroke-width:1px

A. DataFrame AgentsB. Retriever AgentsC. StateGraph OrchestrationD. Human‑In‑The‑Loop UI

Analyze your pandas DataFrame to extract:
- Variables: names, types, ranges, categorical values
- Constraints: input-only constraints inferred from observed data patterns.
- Rules: domain rules linking features to model outcomes.

Mine unstructured sources (PDFs, docs) to extract:
- Feature descriptions and contextual notes
- Explicit constraints and domain rules authored by experts

Combines multiple agent outputs in a LangGraph state machine:
1. Parallel analysis & retrieval of variables, constraints, rules.
2. YAML generation node merges insights into a draft YAML spec.
3. Human‑In‑The‑Loop node pauses execution and exposes the draft YAML and validator output via the UI.
4. Validation node checks compliance against a Pydantic schema and runs rule-consistency checks.

Shows a Gradio interface (localhost) offering:
1. The generated YAML spec
2. Validator feedback
3. Text area to edit or add instructions
4. Buttons: Validate, Regenerate, Finish

Validation Loop

If schema validation or rule-consistency checks fail, control returns to the interactive UI. Use Validate after manual fixes or Regenerate to iterate until the specification meets your requirements.

Modular Implementation

VerifIA’s AI‑Powered Domain Generation is a modular, LLM‑driven workflow orchestrated via LangChain and LangGraph.

It’s organized into five layers:

3.1 Input Layer

Structured Data: CSV files or pandas DataFrames
Unstructured Data: PDF documents (indexed in Chroma)
Model Card: YAML/JSON metadata describing features and target

3.2 Agent Layer

DataFrame Analysis Agents: Extend LangChain’s pandas agent to infer variable info, and data‑driven constraints/rules
Retriever Agents: semantically extract domain rules and descriptions from PDFs using a Chroma vector store

3.3 Orchestration Layer

StateGraph Builder:
- Adds six parallel edges from START to the analyser/retriever nodes.
- Registers three core nodes:
  - yaml_generator (draft/spec generation)
  - human_interaction (Gradio UI hook)
  - yaml_validator (schema & rule checks)
Checkpointing: integrates a MemorySaver to persist intermediate state, enabling retries and inspection.

3.4 Human‑In‑The‑Loop Layer

human_interaction node:
- Features a lightweight Gradio UI on localhost, displaying:
  1. Current YAML draft
  2. Validator feedback
  3. Editable text area for manual tweaks or instructions
  4. Validate, Regenerate, Finish buttons
- Routes control back into the graph based on user action:
  - Validate → yaml_validator
  - Regenerate → yaml_generator
  - Finish → graph END

3.5 Validation & Export Layer

yaml_validator node:
1. Parses the YAML string → ✔/❌ parse status
2. Enforces Pydantic schema → ✔/❌ schema status
3. Runs RuleConsistencyVerifier → ✔/❌ logical consistency
4. Appends all reports into validator_output
domain_generator node:
- On first pass, merges agent outputs and drafts a first YAML spec.
- On regeneration, injects user edits and instructions to update the YAML spec.
Export: when Finished, the user can download the final YAML spec to use it for Verification.

Iterative Human‑In‑The‑Loop Process

AI assistance jump‑starts your domain spec, but human review ensures correctness:

Logical consistency: Do the rules make sense?
Completeness: Are all critical features and constraints captured?
Refinement: Tweak prompts, schema settings, or your documents and re-run as needed.

Success: Your combined domain expertise and VerifIA’s AI power deliver robust, production‑ready specifications.

Step‑by‑Step Usage

1. Install & Configure

pip install verifia[genflow]

Set your API keys and tuning parameters:

export OPENAI_API_KEY="sk-..."                     # required
export VERIFIA_GPT_MODEL="gpt-4.1"                 # optional, default: gpt-4o-mini
export VERIFIA_GPT_TEMPERATURE="0"                 # default: 0 (deterministic)
export VERIFIA_VALIDATOR_MAX_RETRIES="3"           # default: 3
# (Optional) LangChain tracing:
export LANGCHAIN_API_KEY="lk-..."
export LANGCHAIN_TRACING_V2="true"
export LANGCHAIN_ENDPOINT="https://api.smith.langchain.com"
export LANGCHAIN_PROJECT="VERIFIA"

2. Prepare Your Inputs

Dataset: data/my_dataset.csv or a pandas DataFrame
Documentation: PDFs/Markdown in docs/
Model Card: YAML file model_card.yaml, e.g.:

name: my_model
version: "1"
type: regression
framework: sklearn
feature_names:
  - feature_1
  - feature_2
target_name: target
local_dirpath: ./models

3. Initialize & Load Context

from verifia.generation import DomainGenFlow

flow = DomainGenFlow().load_ctx(
    data_fpath="data/my_dataset.csv",       # or dataframe=df
    pdfs_dirpath="docs/",                   # or db_str_content / vectordb
    model_card_fpath="model_card.yaml"      # or model_card=dict(...)
)

Error Handling: Missing or invalid paths raise a ValueError—verify your file locations before proceeding.

4. Run Domain Generation UI

# 4) spin up the UI
flow.launch()

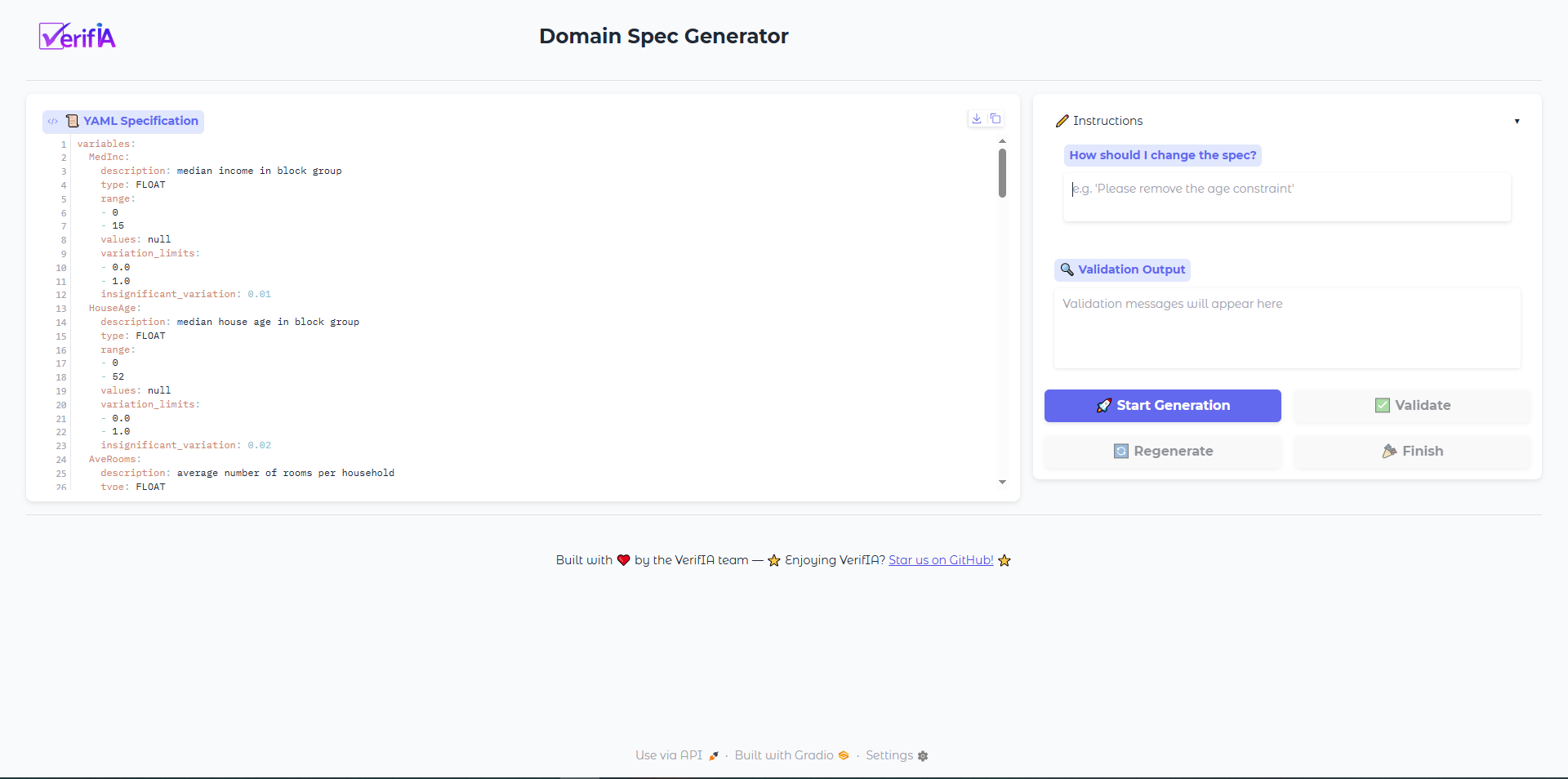

🖼️ UI Snapshot: VerifIA Domain Spec Generator

VerifIA Domain Spec Generator UI preview

Fig. Static UI preview—click image for full‑size view.

Gradio window shows your draft YAML + validation output.
Edit the YAML or add instructions.
Click Validate (loops back on errors), Regenerate (re‑runs generator with your notes), or Finish (after saving the YAML).

variables:
  age:
    description: "Age of applicant"
    type: INT
    range: [18, 65]
constraints:
  positive_balance:
    description: "Account balance > 0"
    formula: "account_balance > 0"
rules:
  credit_risk_rule:
    description: "Higher debt-to-income increases risk"
    premises:
      debt_income_ratio: inc
    conclusion:
      credit_risk: inc

6. Integrate with VerifIA Verification

from verifia.verification import RuleConsistencyVerifier
from verifia.verification.results import RulesViolationResult

verifier = RuleConsistencyVerifier("output/generated_domain.yaml")
result: RulesViolationResult = (
    verifier.verify(model_card="model_card.yaml")
            .on(data_fpath="data/test_data.csv")
            .using("PSO")
            .run(pop_size=50, max_iters=20)
)

Now you can save or log your report:

result.save_as_html("verification_report.html")
result.log_as_html("verifia_domain_generation_report")

Next Steps

Dive deeper into Domain Creation Guide for manual examples.
Explore Use Case Gallery to see end‑to‑end workflows.
Read about VerifIA's core concepts in VerifIA Concepts.
